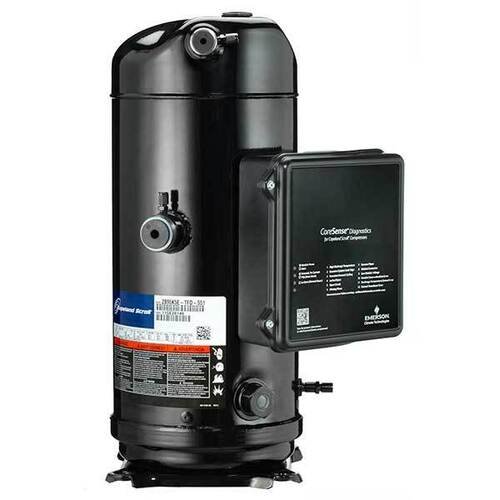

scroll compressor zb92

Description

Technical Specifications:

• Model: ZB92KCE-TWD
• Refrigeration Capacity: Approximately 19.66 kW under nominal conditions with R404A refrigerant, evaporating at -10°C, condensing at 45°C, 10K superheat, and 0°C subcooling.
• Displacement: 35.6 m³/h
• Oil Charge: 4.14 liters
• Oil Type: POE RL32-3MAF
• Net Weight: 95 kg
• Power Supply: 400V/3Ph/50Hz
• Maximum Continuous Current (MCC): 25.1 A
• Locked Rotor Amperage (LRA): 167.0 A
• Maximum Suction Pressure: 22.6 bar
• Maximum Discharge Pressure: 32.0 bar
• Dimensions: Length: 316 mm, Width: 357 mm, Height: 532 mm
• Suction Connection Thread Diameter: 1 3/4 inch
• Discharge Connection Thread Diameter: 1 1/4 inch
• Approved Refrigerants: R22, R134a, R404A, R407C
• Protection Rating: IP54 (IEC34)

scroll compressor zb92

The ZB92KCE-TWD Copeland Scroll compressor is designed to satisfy the requirements of contemporary refrigeration systems. It is appropriate for a range of commercial applications because to its scroll design, which guarantees great efficiency and durability. It efficiently manages medium-to-high-temperature refrigeration operations with a displacement of 35.6 m³/h and a refrigeration capacity of roughly 19.66 kW. In order to ensure compatibility with common industrial power systems, the compressor runs on a 400V, three-phase power source at 50Hz. With a 4.14-liter charge capacity, it uses POE RL32-3MAF oil, which guarantees the best lubrication and performance. The unit’s 316 mm length, 357 mm width, and 532 mm height, as well as its net weight of 95 kg, demonstrate its sturdy construction. Thread is used in the design of the suction and discharge connections. To satisfy the requirements of contemporary refrigeration systems, the Copeland Scroll ZB92KCE-TWD compressor was designed. Because of its scroll design, which guarantees great efficiency and longevity, it can be used in a variety of commercial applications. With a displacement of 35.6 m³/h and a refrigeration capacity of roughly 19.66 kW, it can efficiently manage refrigeration duties involving medium to high temperatures. The compressor runs at 50 Hz on a 400V, three-phase power source, making it compatible with common industrial power systems. It uses POE RL32-3MAF oil, which has a 4.14-liter charge capacity and guarantees the best possible lubrication and performance. Its 95 kg net weight and 316 mm length, 357 mm width, and 532 mm height demonstrate the unit’s sturdy construction. The thread design is used for the suction and discharge connections.
