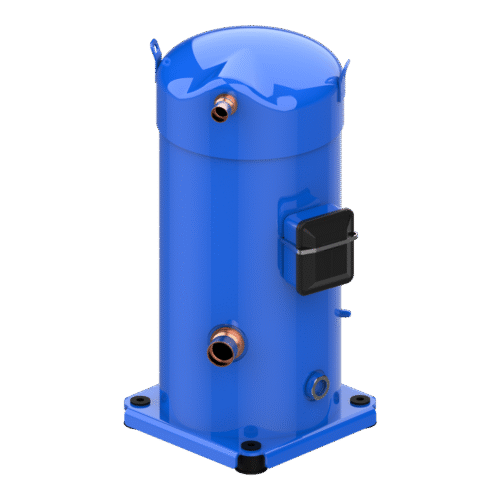

Danfoss Scroll Compressor SZ161

Product Details:

• Model: SZ161
• Brand: Danfoss
• Refrigerants: Compatible with R134a, R404A, R407C, and R513A
• Voltage: Three-phase power supply options:
  • 380-415V/50Hz
  • 460V/60Hz
• Rotational Speed:
  • 2900 rpm at 50 Hz
  • 3500 rpm at 60 Hz
• Maximum Refrigerant Charge: 12.5 kg
• Refrigerant Connections:
  • Suction Connection: 1-3/8″ ODF
  • Discharge Connection: 7/8″ ODF
• Dimensions:
  • Diameter: 266 mm
  • Total Height: 591 mm
• Weight: Net weight approximately 89.2 kg
• Oil Type: Polyolester (POE) oil
• Mounting: Vertical installation with a mounting kit including grommets, bolts, nuts, sleeves, and washers

Danfoss Scroll Compressor SZ161

The Danfoss SZ161 scroll compressor is designed to operate effectively in air conditioning and refrigeration systems with medium temperatures. It offers versatility for a range of applications due to its compatibility with several refrigerants, such as R134a, R404A, R407C, and R513A. The compressor ensures optimal performance across various power supplies by operating at rotational speeds of 2900 rpm at 50 Hz and 3500 rpm at 60 Hz. It is intended for a three-phase power source and can handle voltages between 380 and 415 V at 50 Hz and 460 V at 60 Hz. Brazed connectors allow the SZ161 to be safely and dependably integrated into HVAC systems. It is appropriate for a variety of commercial and industrial cooling applications because to its sturdy design and cutting-edge scroll technology, which provide dependable and effective performance.
