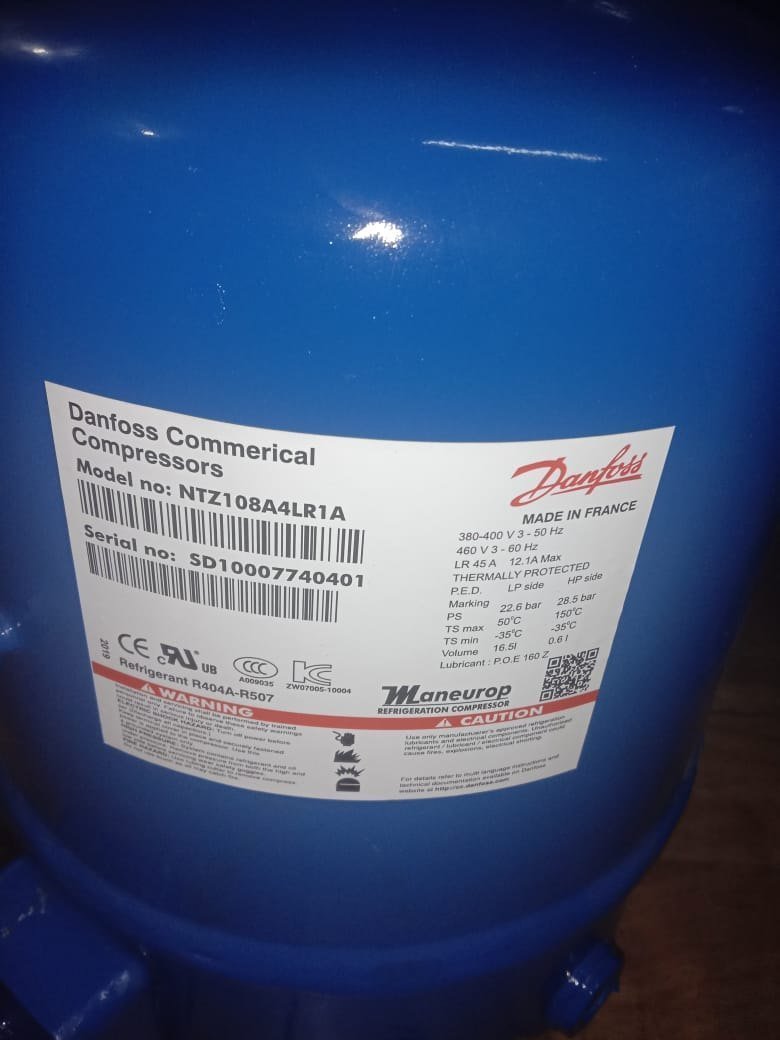

Danfoss Compressor ntz108

• Model Number: NTZ108
• Technology: Reciprocating
• Cylinder Count: 2
• Swept Volume: 108 cm³
• Rotational Speed: 2900 RPM at 50 Hz; 3500 RPM at 60 Hz
• Refrigerants Supported: R404A, R452A
• Maximum Refrigerant Charge: 5 kg

Dimensions and Connections:

• Total Height: 413 mm
• Diameter: 288 mm
• Suction Connection:
  • Height: 265 mm
  • Pipe Size: 7/8 inch
  • Rotolock Size: 1 3/4 inch
• Discharge Connection:
  • Height: 74 mm
  • Pipe Size: 3/4 inch
  • Rotolock Size: 1 1/4 inch

Operating Limits:

• Maximum Suction Pressure: 22.6 bar
• Maximum Discharge Pressure: 28.5 bar
• Maximum Suction Temperature: 50°C
• Minimum Suction Temperature: -35°C
• Maximum Discharge Temperature: 150°C
• Minimum Discharge Temperature: -35°C

Electrical Specifications:

• Power Supply: 400V/3Ph/50Hz
• Maximum Continuous Current: 12.1 A
• Locked Rotor Amperage: 45.0 A
• Winding Resistance: 4 Ohm (for three-phase compressors with identical windings)

Additional Details:

• Oil Charge: Pre-charged with 1.8 liters of 175PZ oil
• Mounting Kit: Includes grommets, bolts, nuts, sleeves, and washers
• Compliance: UK RoHS compliant with exemptions

Danfoss Compressor ntz108

A reciprocating compressor made for low-temperature refrigeration applications is the Danfoss NTZ108. It rotates at a speed of 2900 RPM @ 50 Hz and has a swept volume of 108 cm³. The compressor can handle a maximum refrigerant charge of 5 kg and is compatible with the refrigerants R404A and R452A. It has two cylinders and is controlled by a fixed-speed capacity mechanism. The NTZ108 weighs about 35 kg net and measures 413 mm in height and 288 mm in diameter. The discharge connection is 3/4 inch, while the suction connection is 7/8 inch. With a locked rotor amperage of 45.0 A and a maximum continuous current of 12.1 A, the compressor runs on a 400V/3Ph/50Hz power source. It arrives Reciprocal compressors like the Danfoss NTZ108 are made for low-temperature refrigeration applications. It has a sweeping volume of 108 cm³ and rotates at a speed of 2900 RPM at 50 Hz. The compressor can handle up to 5 kg of refrigerant charge and is compatible with R404A and R452A. Utilizing a fixed-speed capacity control mechanism, it has two cylinders. In terms of height, the NTZ108 measures 413 mm by 288 mm and weighs about 35 kg by net. The dimensions of the discharge and suction connections are 3/4 and 7/8 inches, respectively. The compressor has a locked rotor amperage of 45.0 A, a maximum continuous current of 12.1 A, and runs on a 400V/3Ph/50Hz power source.
